- Robust control pan designed for reliability and simplicity.
- Extremely strong structure
- A big box allows easy handling for installation and maintenance.
- Made of thick SS
- Available with a proximity sensor and Micro-switch control.
- Easy to suspend and balance.
COM list
| Growth type | Type | Catalog no. |
| Broilers | Microswitch | 02318026 |
| Proximity Sensor | 02318025 | |
| Pullets / Males | Microswitch | 02312322 |
| Proximity Sensor | 02312320 | |
| Turkey Poults | Microswitch | 02312442 |
| Proximity Sensor | 02310955 | |
| Breeders female | Proximity Sensor | 02312480 |

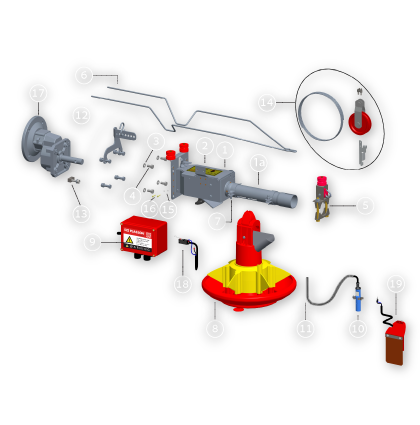

Spare part list
| catalog no. | Description | QTY | |
| 1 | 02313027 | PCP2 Connection Box Long Inlet V2 | 1 |
| 1a | 02310918 | RCP Connection Box Inlet (Included in no. 1) | 1 |
| 2 | 02310230 | Safety Label for Hopper | 1 |
| 3 | 02310054 | Spring Washer 8MM | 4 |
| 4 | 02310430 | Bolt M8X16, Hex Head, Zinc Coated | 4 |
| 5 | 02310503 | Anti-Perch PCF Clamp Set | 1 |
| 6 | 02310863 | PCP2 Anti Perch Wire and Isolator Set | 1 |
| 7 | 02310895 | Feeder Pan Anti Rotation Bracket 45mm Set | 2 |
| 8 | 02312544 | PCP2 Pan | 1 |
| 9 | 02324139 | PCP2 Junction Box Set – Pan Selector Switch Ready | 1 |
| 10 | 0288102915 | DOL 26-05 Sensor CA-P-DIA. 18-NF-CA-SCR-B-OT | 1 |
| 11 | 02311547 | Electric Cable Protection Spring | 1 |
| 12 | 02312488 | Gear to Motor Bolts Metric Kit | 1 |
| 13 | 02313219 | Auger Latch DIA. 35.8 Set | 1 |
| 14 | 02310527 | C.U. Suspension Kit | 1 |
| 15 | 02310437 | Spring Washer 3MM | 2 |
| 16 | 02310943 | M3X16 Hex Socket Screw (DIN 912))-SS304 | 2 |
| 17 | 02310507 | Gearbox 1:3.94 Square Flange | 1 |
| 18 | 02318036 | Safety Switch V2 (Included IN No.9) | 1 |
| 19 | 02310800 | Dhumal Micro Switch | 1 |
