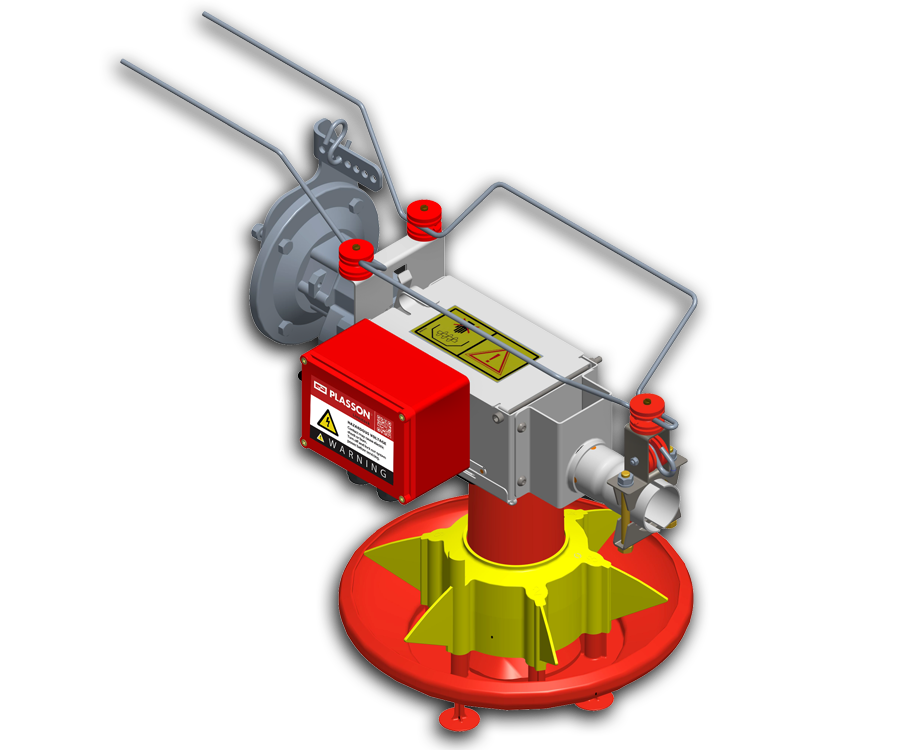

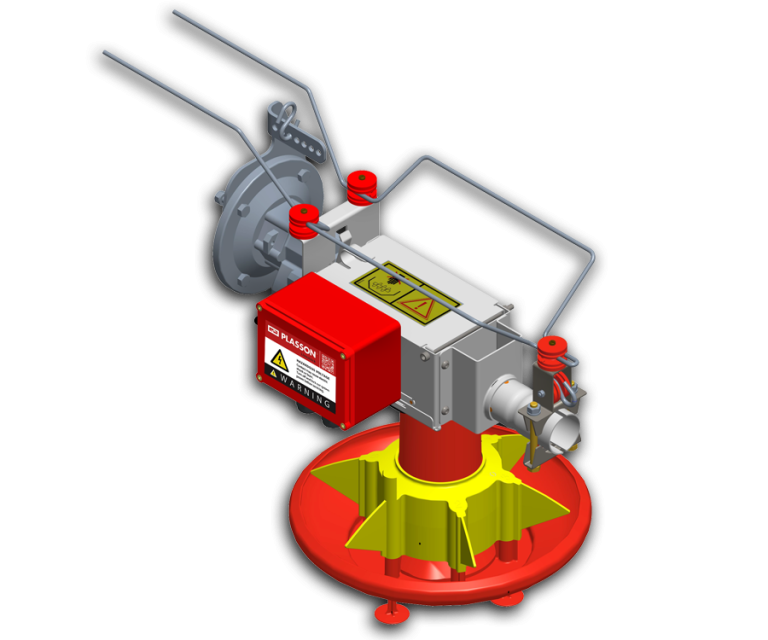

- Robust control pan designed for reliability and simplicity.
- Extremely strong structure
- A big box allows easy handling for installation and maintenance.
- Made of thick SS
- Available with a proximity sensor and Micro-switch control.
- Easy to suspend and balance.
COM list
| Growth type | Type | Catalog no. |
| Broilers | Microswitch | 02311433 |
| Proximity Sensor | 02311435 | |
| Pullets / Males | Microswitch | 02311441 |
| Proximity Sensor | 02311443 | |
| Turkey Poults | Microswitch | 02311447 |
| Proximity Sensor | 02311449 |
Spare part list
| catalog no. | Description | QTY | |
| 1 | 0288102915 | DOL 26-05 Sensor CA-P-DIA. 18-NF-CA-SCR-B-0T | 1 |
| 2 | 02311427 | RCP Connection Box Set | 1 |
| 3 | 02311428 | RCP Pan W/ Proximity Sensor for Broilers Set | 1 |
| 3a | 02311426 | RCP Pan W/ Microswitch for Broilers Set | 1 |
| 4 | 02310230 | Safety Label for Hopper (BR) | 1 |
| 5 | 02310527 | C.U. Suspension Kit | 1 |
| 6 | 02324139 | PCP2 Junction Box Set-Pan Selector Switch Ready | 1 |
| 7 | 02310054 | Spring Washer 8MM | 4 |
| 8 | 02312488 | Control Pan Fasteners and Suspension Set Metric | 1 |
| 9 | 02312556 | Plastic Strap 200MMª2.5MM Black (100) | 1 |
| 10 | 02310943 | DIN 912 M3X16 Pan Head Phillips Screw SS304 | 2 |
| 11 | 02321628 | DIN 985 M3 Nut SS304 | 2 |
| 12 | 02310507 | Gearbox 1:3.94 Square Flange | 1 |
| 13 | 02311379 | Dhumal Micro Switch 0,500M | 1 |
| 14 | 02310503 | Anti-Perch PCF Clamp Set | 1 |
| 15 | 02311460 | RCP Anti Perch Wire and Isolator Set | 1 |
| 16 | 02318036 | PCP2 Safety Switch V2 (Included in No.6) | 1 |
| 17 | 02313219 | Auger Latch DIA. 35.8 Set | 1 |
| 18 | 02310430 | Bolt M8X16, Hex Head, Zinc Coated | 4 |
